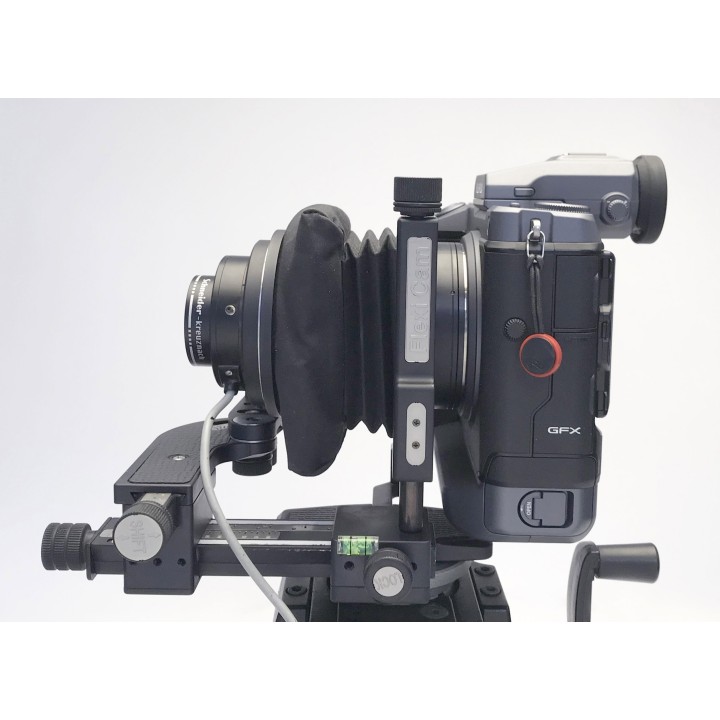

Fuji GFX Adapter for Flexicam

The Fuji body works as a digital back while the Flexicam body offers shifting and tilting movements, in a light and compact solution that is easy to transport and assemble. - Tilting movements for selective focus - The adapter can be housed in a vertical or horizontal position - Ideal for outdoor use, small size and weight: 18.8 x 18 x 16.2 cm. - Kg. 1,1- Focus on the self-locking micrometric sliding base.

LENSES

The constructive choice allows the optics to get as close as possible to the focal plane. The wide Silvestri bayonet allows the use of recessed lens holder bayonets.

Please note that suitable lenses are required. Refer to the sketch, the lens specifications and the chosen adapter for information:

Flexicam X A= 22 mm.

Bayonet B= 1,5 mm,

Fuji adapter X= 10,5 mm. Y= 26,7 mm.

Sony alpha X= 10mm. Y= 18 mm.

Canon EOS X= 10mm. Y= 44 mm.

Nikon F X= 10mm. Y= 46,5 mm.

Compatible lenses:

SIL0010 Apo Silvetar 5.6/35 mm

EN391 Rodagon 4,0/80mm

EN394 Rodagon 5,6/105mm

EN092 Apo Rodagon N 4,0/80mm

EN094 Apo Rodagon N 4,0/90mm

EN096 Apo Rodagon N 4,0/105mm

EN276 Rodagon WA 4,0/60mm

HR Digaron W 5,6/70mm

HR Digaron W 5,6/90mm

HR Digaron S 4/100mm
